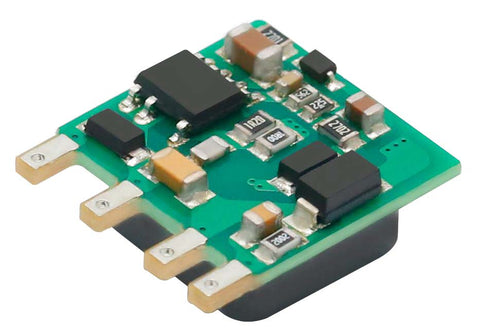

LS05-K3BxxSS series is one of Mornsun’s highly efficient green power AC-DC Converter series. It features wide input voltage range, accepting both DC and AC input voltage, high reliability and low power consumption. All models are widely used in industrial control instrumentation, electric power applications and smart home applications which have high requirement for dimension, the need to meet CE safety certifications and lower demand for EMC compliance levels. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

• Ultra-wide 85 - 305VAC and 70 - 430VDC input voltage range

• Operating ambient temperature range: -40℃ to +85℃
• Compact size, open frame
• Up to 77% efficiency
• Green power
• Industrial-grade design
• Flexible selection of EMC additional circuits, simplify customer PCB layout
• Output short circuit, over-current protection
