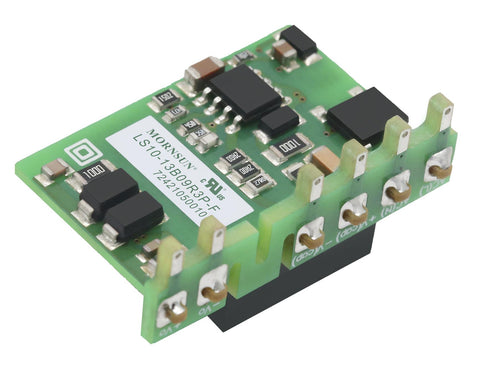

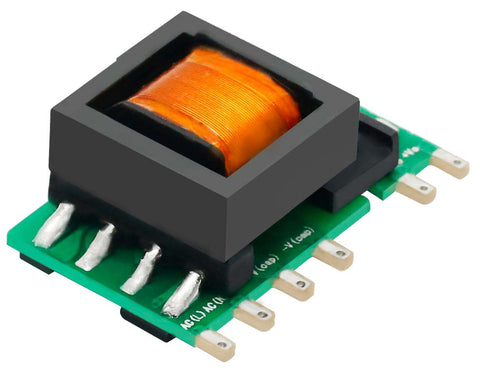

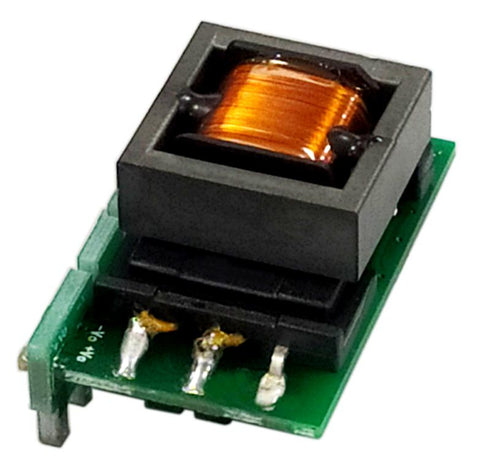

LS10-13BxxR3P(-F) series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

• Ultra-wide 85 - 305VAC and 90 - 430VDC input voltage

  range
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -40℃ to +85℃
• Multi application, flexible layout
• Compact size, high power density, green power
• No-load power consumption as low as 0.1W
• Output short circuit, over-current protection
• Designed to meet IEC/EN61558-1, IEC/EN60335-1 standards
