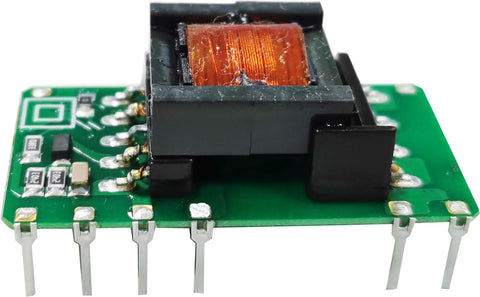

LS15-13BxxSS(-F) series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature ultra-wide input range accepting either AC or DC voltage, high efficiency, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

• Universal 85-305VAC or 100-430VDC input voltage

• Accepts AC or DC input(dual-use of same terminal)
• Operating ambient temperature range: -40℃ to +85℃
• Small size, high power density
• Low power consumption, green power
• Output short circuit, over-current, over-voltage protection
• Regulated output, low ripple & noise
• Design to meet IEC/EN60335 standards
• IEC/EN/UL62368 safety approval

Datasheet Link
