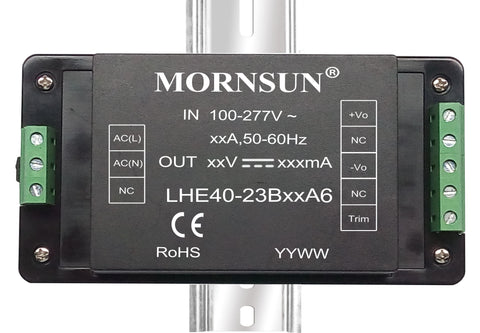

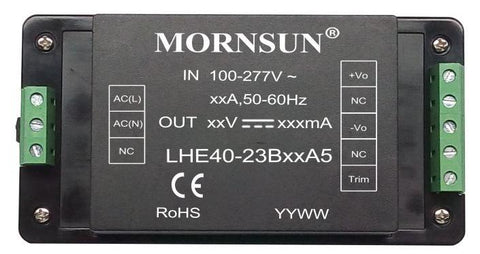

LHE40-23Bxx series are 40W efficient environmental-protection AC-DC module power supply. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4, CISPR32/EN55032, and is safety certified to IEC/EN/UL62368 standards. The converters are widely used in areas of industrial, electricity, office and applications with unstable supply voltage. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

• Wide 85-305V Universal AC or 100-430VDC Input voltage

• Operating ambient temperature range: -40℃ to +70℃
• High I/O isolation test voltage up to 4000VAC
• Regulated output, low ripple & noise
• Output short circuit, over-current, over-voltage protection
• High efficiency, high reliability
• Plastic case meets UL94V-0 flammability
• Meet EMI CISPR32/EN55032 CLASS B
• EN62368 safety approved
