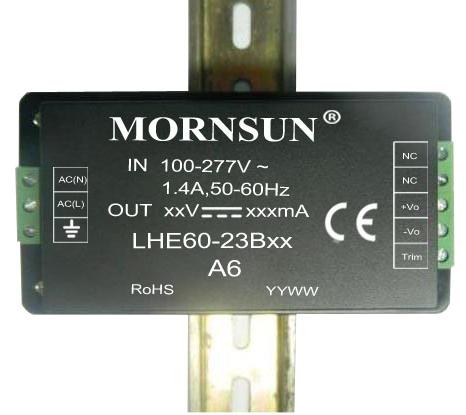

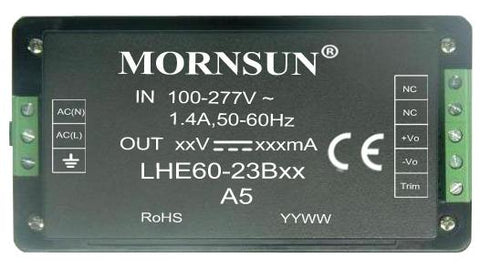

LHE60-23Bxx series AC-DC converters are highly efficient, environmental-friendly 60W power modules. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368 standards. The converters are widely used in industrial, power, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

• Universal 85-305VAC or 100-430VDC input voltage

• Operating ambient temperature range: -40℃ to +70℃
• High I/O isolation test voltage up to 4000VAC
• High efficiency, high reliability
• Output short circuit, over-current, over-voltage protection
• Regulated output, low ripple & noise
• Plastic case meets UL94V-0 flammability
• Meets EMI CLASS B and surge level 4
• EN62368 safety approval
